Connection size & installation fit
Choose 22 mm or 28 mm to suit your heating pipework. Contact us for pricing and availability for the selected size. Allow access for magnet removal and servicing.
Pipe connection size is not the overall product size. For a dimensioned drawing or tight-space installation, email sales@rockensupplygroup.co.uk.

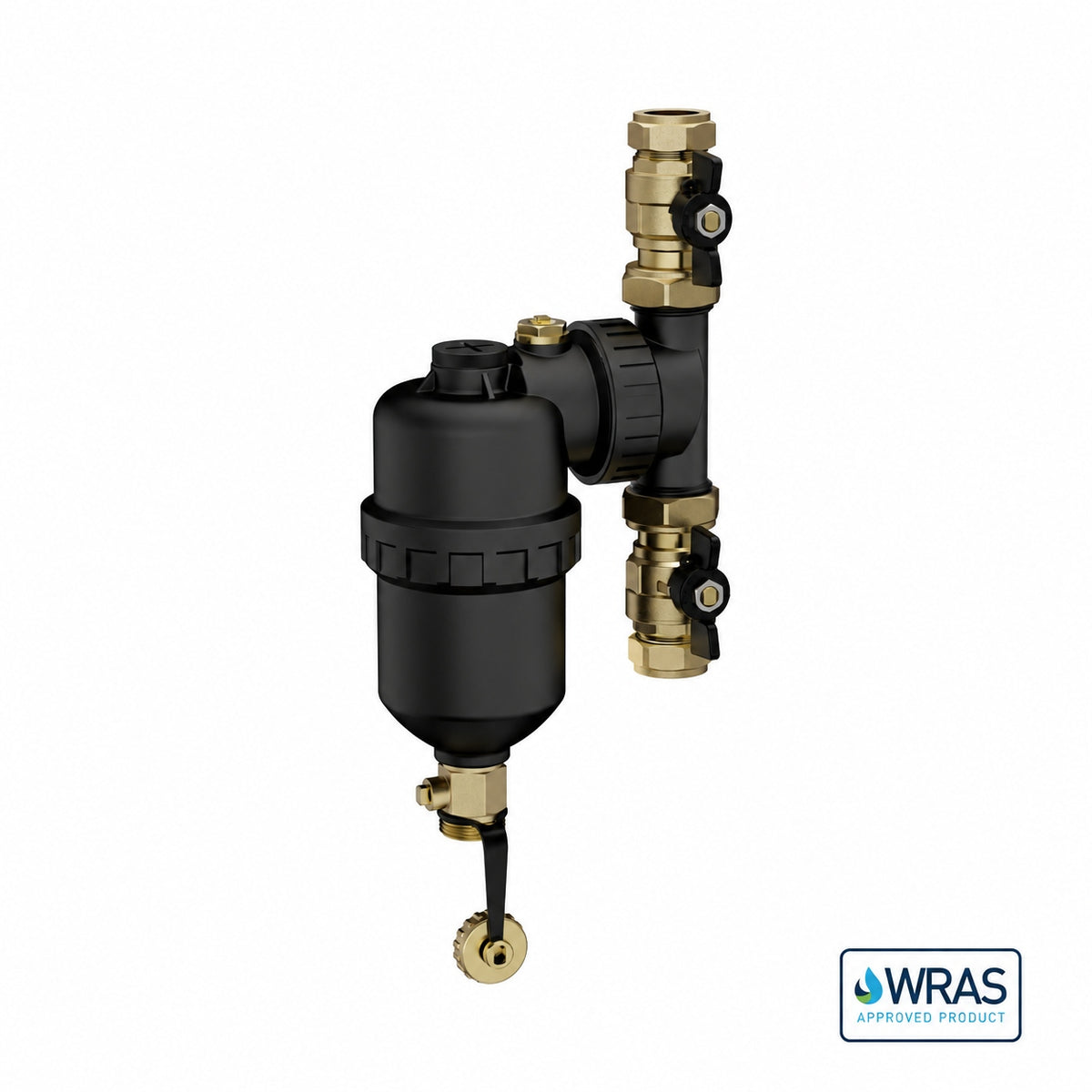

Magnetic Heating System Filter
Product Description
The Magnetic Filter helps protect domestic and commercial sealed heating systems by capturing magnetite and other magnetic corrosion debris as they circulate through the system water. By reducing the build-up of these contaminants, it helps maintain heating performance and supports the service life of boilers, pumps and associated components.
Equipped with a powerful 9,000 Gauss neodymium magnet, the filter combines a reinforced PA66 composite body with HPB59-3 brass valves for durable, reliable operation. Its high-flow design helps minimise pressure loss, while convenient servicing access allows routine cleaning without removing the unit from the pipework.
Available with 22 mm or 28 mm connections and suitable for vertical or horizontal installation, the filter offers flexibility for new installations and existing heating system upgrades.
Key Features
Powerful Magnetic Filtration: A 9,000 Gauss neodymium magnet captures magnetite and other magnetic corrosion debris.
Durable Construction: Reinforced PA66 composite body with HPB59-3 brass valves.
Heating System Protection: Helps reduce magnetic debris build-up in boilers, pumps and associated components.
High-Flow Design: Designed to minimise pressure loss and support effective circulation.
Convenient Servicing: Allows routine cleaning and maintenance without removing the unit from the pipework.
Flexible Installation: Suitable for vertical or horizontal installation.
Choice of Connection Sizes: Available in 22 mm and 28 mm sizes.
Three-Year Warranty: Supplied with a 3-year warranty.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Magnetic Heating System Filter |
| Body Material | Reinforced PA66 Composite |
| Valve Material | HPB59-3 Brass |
| Magnet Type | Neodymium |
| Magnet Strength | 9,000 Gauss |
| Maximum Working Pressure | 12 bar |
| Maximum Working Temperature | 90°C |
| Installation Orientation | Vertical or Horizontal |
| Available Connection Sizes | 22 mm / 28 mm |
| Application | Domestic and Commercial Sealed Heating Systems |
| Warranty | 3 Years |
Applications
Suitable for compatible sealed heating installations, including:
Domestic central heating systems
Commercial heating circuits
Boiler and circulation pump circuits
Radiator heating systems
New installations and existing system upgrades
How It Works
As heating water passes through the filter, the neodymium magnet attracts and retains magnetite and other magnetic debris. This helps reduce the magnetic contamination circulating through the heating system and accumulating in key components.
Regular cleaning removes collected debris and helps maintain filtration performance. The filter can be serviced without removing the unit from the pipework.
