Connection size & installation fit
Choose 15 mm or 22 mm compression connections to suit your pipework. Contact us for pricing and availability for the selected size. Confirm the overall dimensions for the selected size before planning installation clearance.
Pipe connection size is not the overall product size. For a dimensioned drawing or tight-space installation, email sales@rockensupplygroup.co.uk.

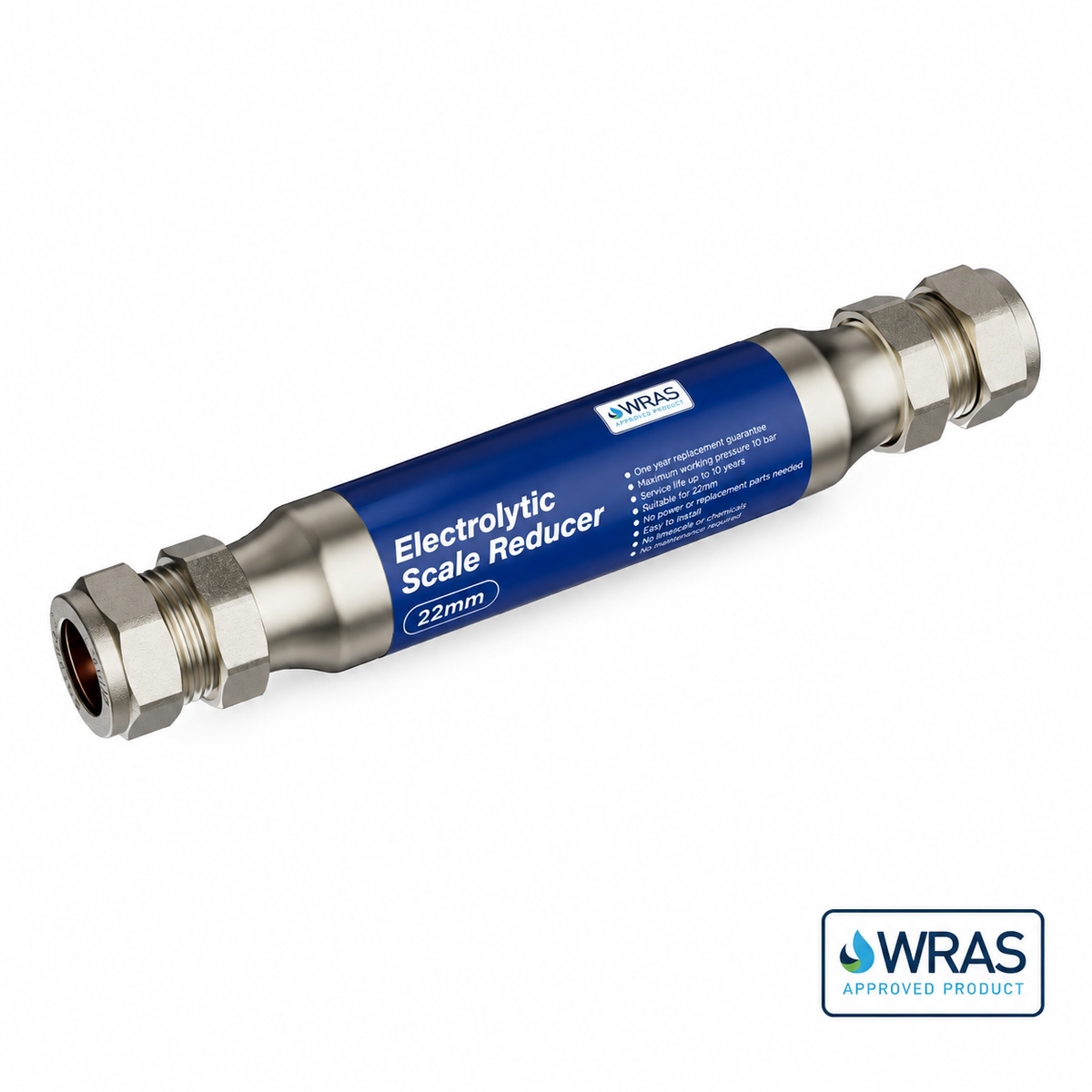

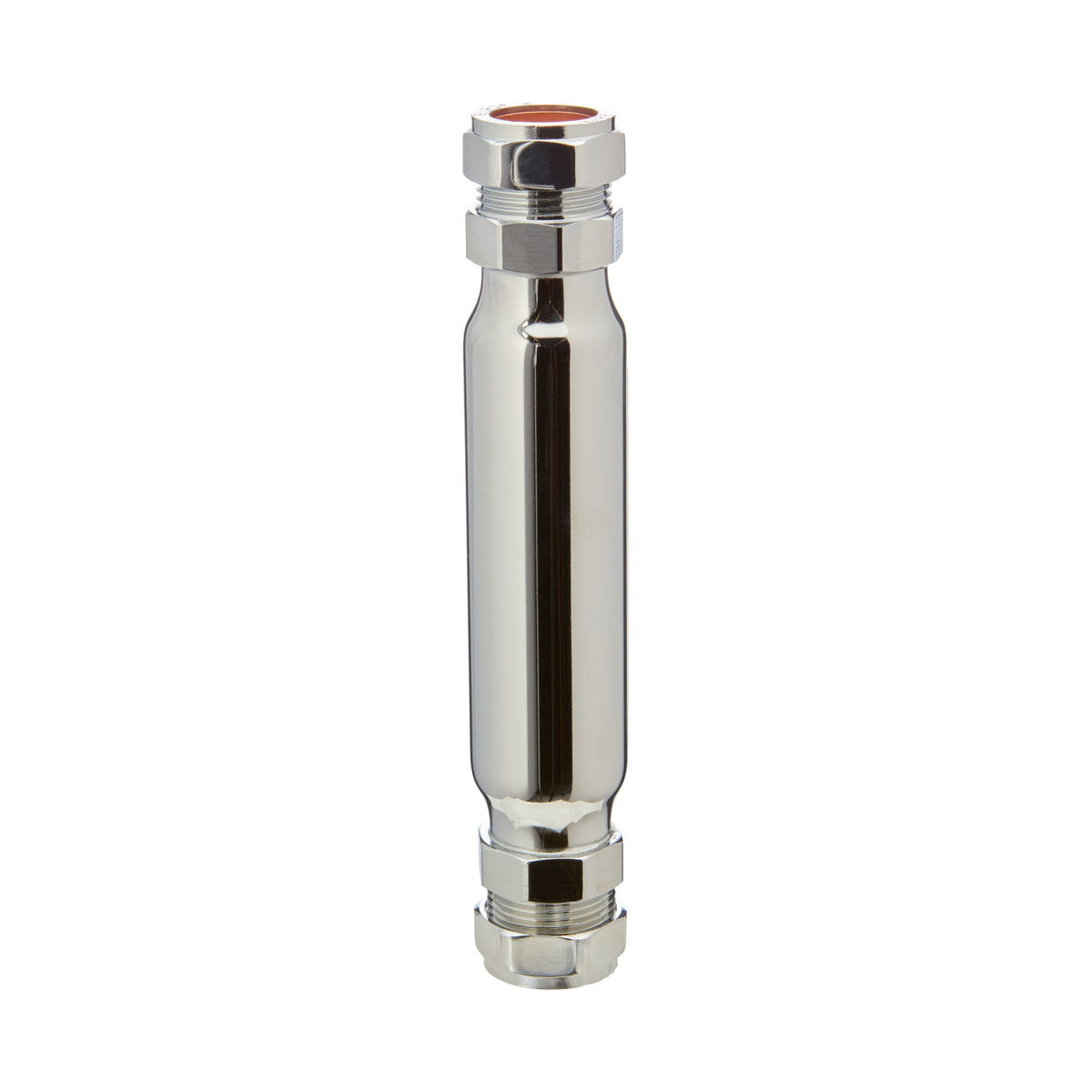

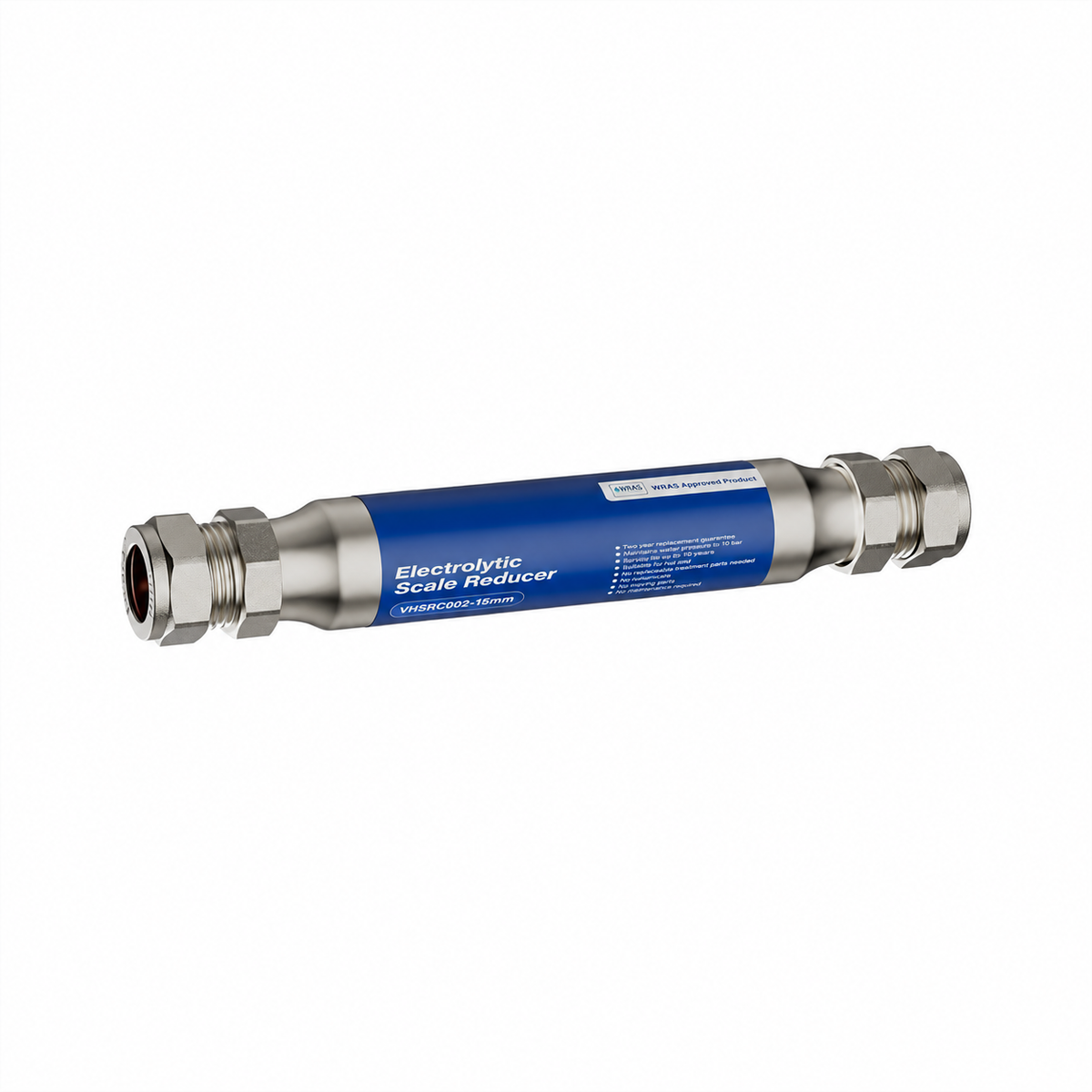

Electrolytic Scale Reducer
Product Description
The Electrolytic Scale Reducer is designed to help limit limescale build-up in domestic water systems, supporting the protection of downstream pipework and water-using equipment.
Manufactured from T2 copper with a chrome-plated finish and an internal zinc electrolytic element, the unit operates without an external power supply, chemical dosing or replacement cartridges.
Its compact inline design integrates directly into compatible water supply pipework. Available with 15 mm or 22 mm compression connections, it is suitable for domestic installations requiring additional protection against the effects of hard water.
With no moving parts or routine servicing requirements, it offers a convenient approach to scale management.
Key Features
Electrolytic Scale Reduction: Designed to help reduce the formation of hard limescale deposits.
No External Power Required: Operates without electricity or wiring.
No Chemical Dosing: Requires no added treatment chemicals or salt refills.
Durable Copper Body: T2 copper construction with a chrome-plated finish.
Internal Zinc Element: Works with the copper body to produce an electrolytic effect as water passes through.
Compact Inline Design: Allows straightforward installation into compatible water supply pipework.
Downstream Equipment Protection: Helps limit scale build-up in boilers, cylinders, heat exchangers and household appliances.
Low Upkeep: No moving parts, replacement cartridges or routine servicing required.
Choice of Connections: Available in 15 mm and 22 mm compression sizes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Electrolytic Scale Reducer |
| Body Material | T2 Copper |
| Finish | Chrome Plated |
| Electrolytic Element | Zinc (Zn) |
| Connection Type | Compression |
| Available Connection Sizes | 15 mm / 22 mm |
| Approximate Length* | 177 mm |
| Approximate Diameter* | 25 mm |
| Maximum Working Pressure* | 10 bar |
| Maximum Flow Rate* | 1.08 L/s (64.8 L/min; approx. 17.1 US gpm) |
| Nominal Flow Rate* | 40 L/min at 3 bar |
| External Power Supply | Not Required |
| Routine Servicing | Not Required |
| Installation | Inline, following the indicated flow direction |
Confirm dimensions, pressure ratings and flow data for the selected connection size before ordering or installation.
Applications
Designed to help limit limescale build-up in domestic water installations serving:
Combination boilers and hot water cylinders
Heat exchangers
Showers and taps
Washing machines and dishwashers
Domestic water pipework and other water-using appliances
How It Works
As water passes through the unit, the copper body and zinc element produce an electrolytic effect intended to influence how scale-forming minerals form deposits. This helps reduce their tendency to form hard, adherent limescale on downstream surfaces.
The unit operates without external electricity or chemical dosing. It is designed for scale reduction and does not remove hardness minerals from the water.
