Connection size & installation fit
Angled configuration. Confirm the required pipe connection and installation clearance with KIVO before ordering.
Pipe connection size is not the overall product size. For a dimensioned drawing or tight-space installation, email sales@rockensupplygroup.co.uk.
Product Description

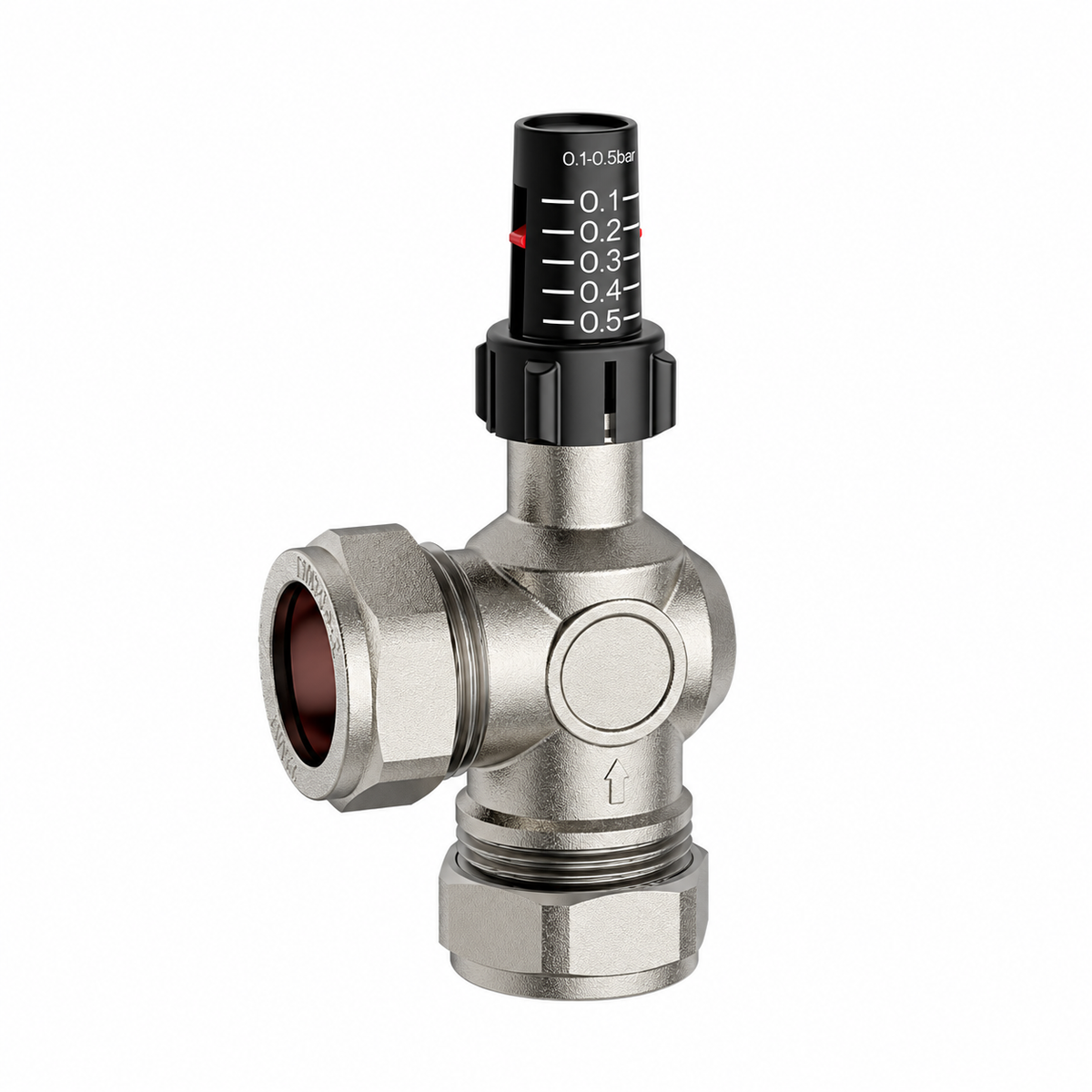

The KIVO Angled Automatic Bypass Valve helps maintain the minimum water flow required in sealed central heating systems. It opens automatically when the differential pressure reaches the selected setting, allowing water to circulate through the bypass as flow through the heating circuit becomes restricted.
With an adjustable differential pressure range of 0.1–0.5 bar, the valve can be set to suit the system’s requirements, helping protect boilers and circulation pumps from insufficient flow and excessive differential pressure. Its angled configuration suits pipework requiring a change of direction, including suitable floor-mounted installations. Manufactured from CW617N brass, it offers durable construction for reliable long-term service.
Key Features
Angled Configuration: Suits pipework requiring a change of direction, including suitable floor-mounted installations.
Adjustable Differential Pressure: Set the bypass opening pressure between 0.1 and 0.5 bar to suit system requirements.
Automatic Bypass Operation: Opens as differential pressure rises to help maintain the required minimum flow.
Boiler and Pump Protection: Helps reduce strain caused by restricted circulation and excessive differential pressure.
Durable Brass Construction: CW617N brass body provides strength and durability for long-term service.
Versatile Applications: Suitable for sealed domestic and commercial central heating systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | KIVO |
| Body Material | CW617N Brass |
| Valve Type | Angled Automatic Bypass Valve |
| Maximum Working Pressure | 10 bar (145 psi) |
| Adjustable Differential Pressure Range | 0.1–0.5 bar |
| Working Temperature Range | 0°C to 90°C (32°F to 194°F) |
| Standard | EN 1254-2 |
